The findings allowed Turner, Sidor, and her co-authors to characterize how Bunostegos might have looked, standing like a cow and about the same size.
“Imagine a cow-sized, plant-eating reptile with a knobby skull and bony armor down its back,” said co-author Linda Tsuji of the Royal Ontario Museum, who discovered the fossils in Niger with Sidor and a team of paleontologists in 2003 and 2006.

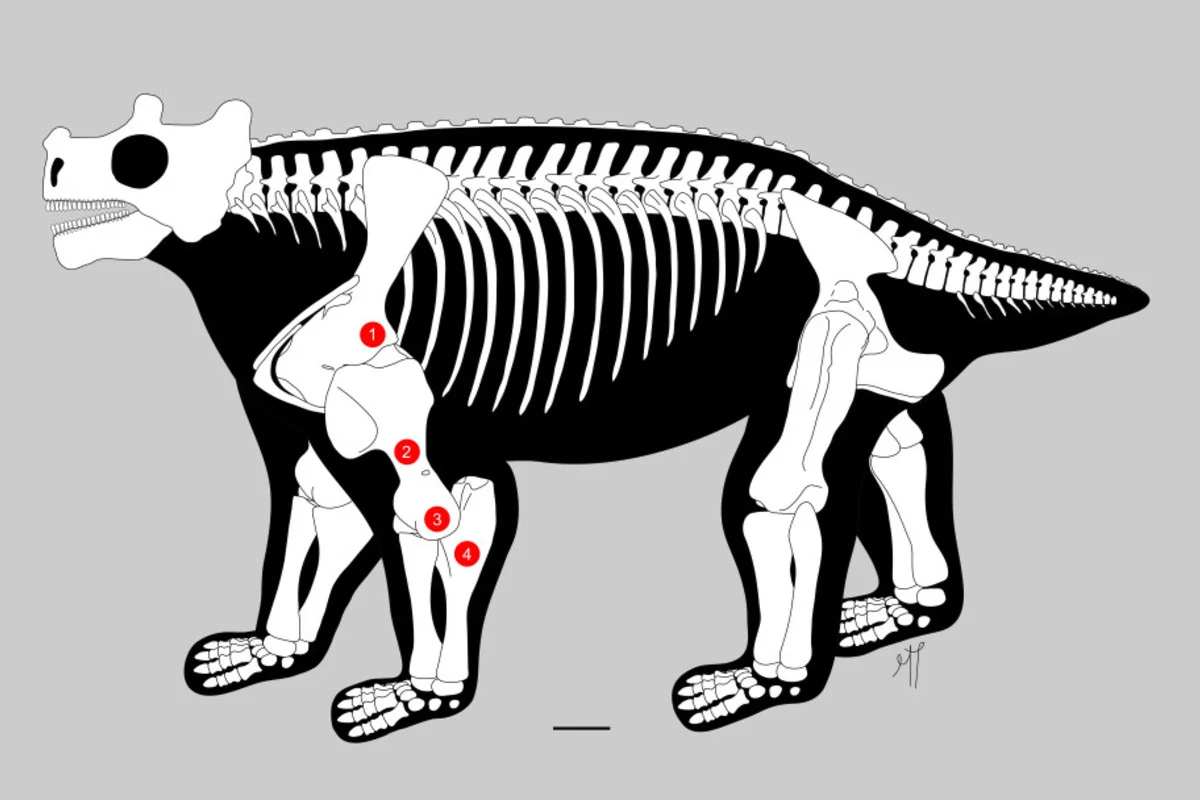

Turner examined much of the skeletons of several individuals. The findings that matter most, however, are all in the forelimbs. In particular, four observations make the case, she said, that Bunostegos stood differently than all the rest, with the legs entirely beneath the body.
The shoulder joint — the glenoid fossa — is facing down such that the humerus (the bone running from shoulder to elbow) would be vertically oriented underneath. It would restrict the humerus from sticking out to the side.
Meanwhile Bunostegos’ humerus is not twisted like those of sprawlers. In a sprawler, the twist is what could allow the humerus to jut out to the side at the shoulder and then orient the forearm downward from the elbow. But the humerus of Bunostegos has no twist, suggesting that the foot could actually reach the ground only if the elbow and shoulders were aligned under the body, Turner said.
The elbow joint is also telling. Unlike in sprawling pareiasaurs, which had considerable mobility at the elbow, the movement of Bunostegos’s elbow is more limited. The way the radius and ulna (forearm bones) join with the humerus forms a hinge-like joint, and wouldn’t allow for the forearm to swing out to the sides. Instead, it would only swing in a back and forth direction like a human knee.
Finally, the ulna is longer than the humerus in Bunostegos, which is a common trait among non-sprawlers. “Many other sprawling four-legged animals have the reverse ratio,” Turner said.
The idea that Bunostegos would be an outlier in terms of its posture matches well with the idea that it was somewhat of an outlier in its choice of habitat.
“Bunostegos was an isolated pareiasaur,” Turner said.
Way back when, Niger was an arid place (like some of it is today) where plants and water sources might well have been few and far between. Scientists have associated walking upright on all fours with a more energy-efficient posture than sprawling. For the long journeys between meals, Turner said, the upright posture might have been necessary for survival.
The significance of such an early example of the upright posture is that Bunostegos dates very far back on the evolutionary tree, pushing back the clock on when this posture shows up in evolution.
But Turner said she wouldn’t be surprised if other animals of the time are eventually also found to have similarities to this posture, which evolved independently in reptiles and mammals several times over the eras.
“Posture, from sprawling to upright, is not black or white, but instead is a gradient of forms,” Turner said. “There are many complexities about the evolution of posture and locomotion we are working to better understand every day. The anatomy of Bunostegos is unexpected, illuminating, and tells us we still have much to learn.”
At Brown, Turner is working in the lab of Stephen Gatesy, where she is studying a continuum of postures and locomotion in ancient creatures. In addition to Turner, Tsuji and Sidor, Oumarou Ide of the University of Niamey in Niger is an author of the study.
The National Science Foundation supported the research.
This article is based on material provided by Brown University.
